8-22K psi STONEAGE BANSHEE

SKU: BN9.5

Banshee tube cleaning nozzles use high pressure water as a liquid bearing, thereby eliminating ball bearings, seals or lubricant used in conventional rotary tools. Each tool is easily configured to suit any application by choosing from a variety of replaceable heads and inlet options.


Features:

  • Patented liquid bearing design means no bearings, seals or lubricants to replace
  • Stainless steel construction for extreme durability and longevity

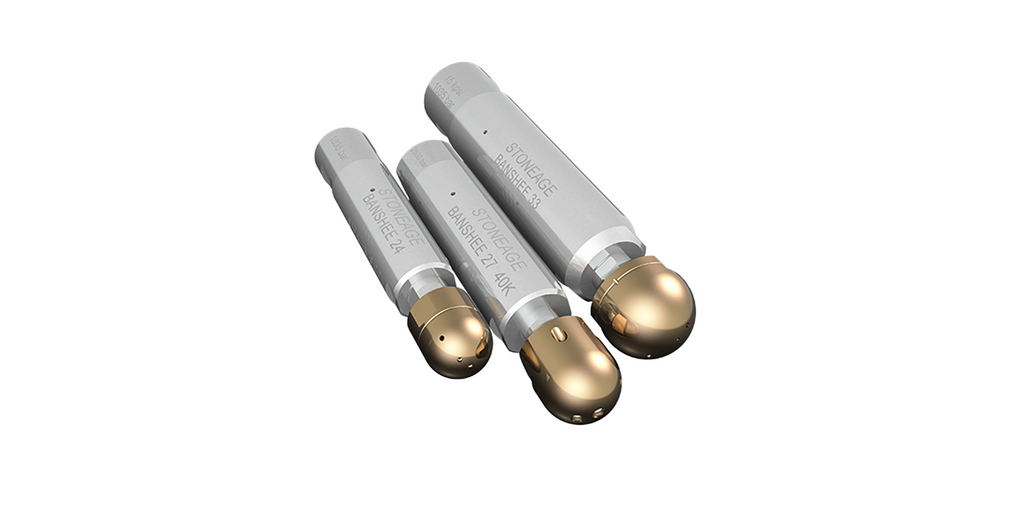

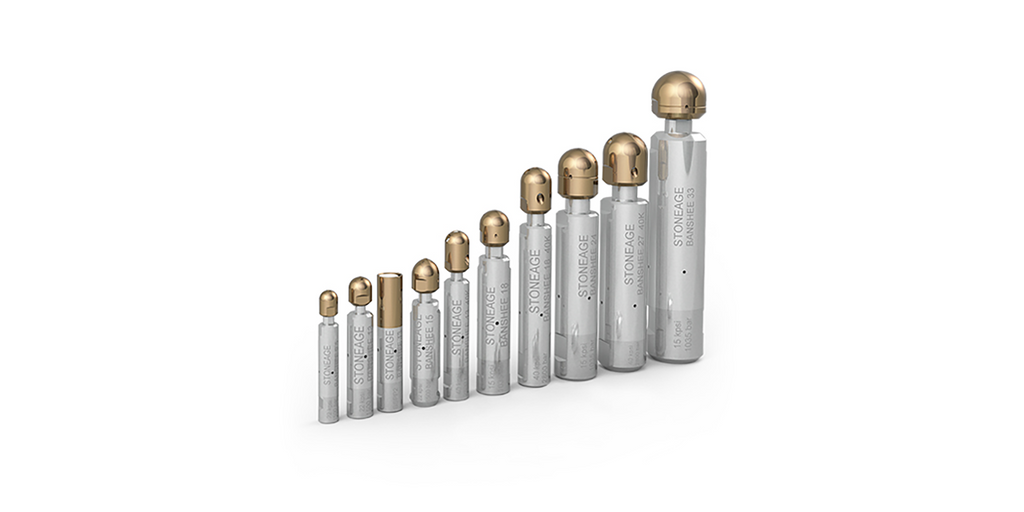

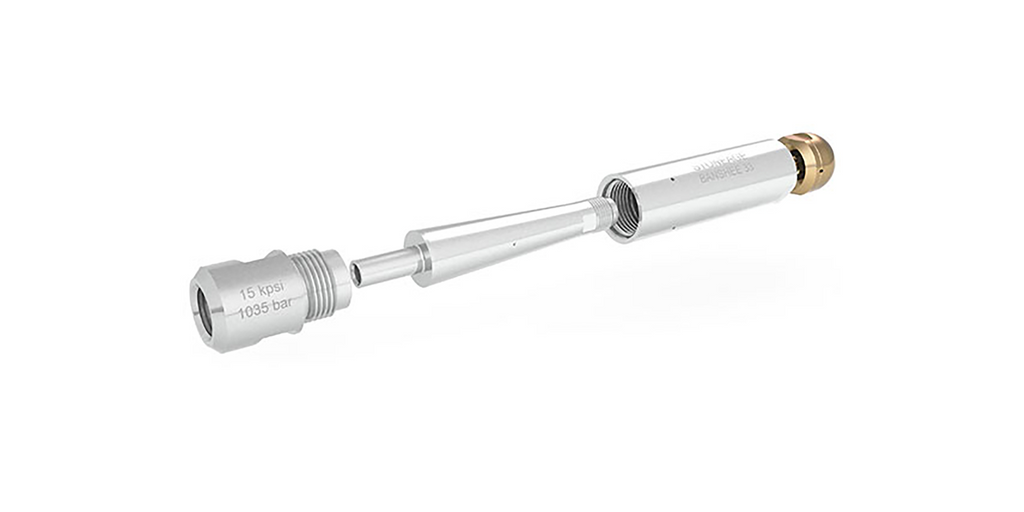

  • Multiple inlet options and replaceable heads make configurations easy
  • Shrouded model keeps head protected and rotating when tool is pushed against a plug

Applications:

  • Unplugging, cleaning, and polishing tubes, such as those found in heat exchangers and industrial tube bundles
  • Effectively removes thin, hard scale, carbons, coke, and polymers

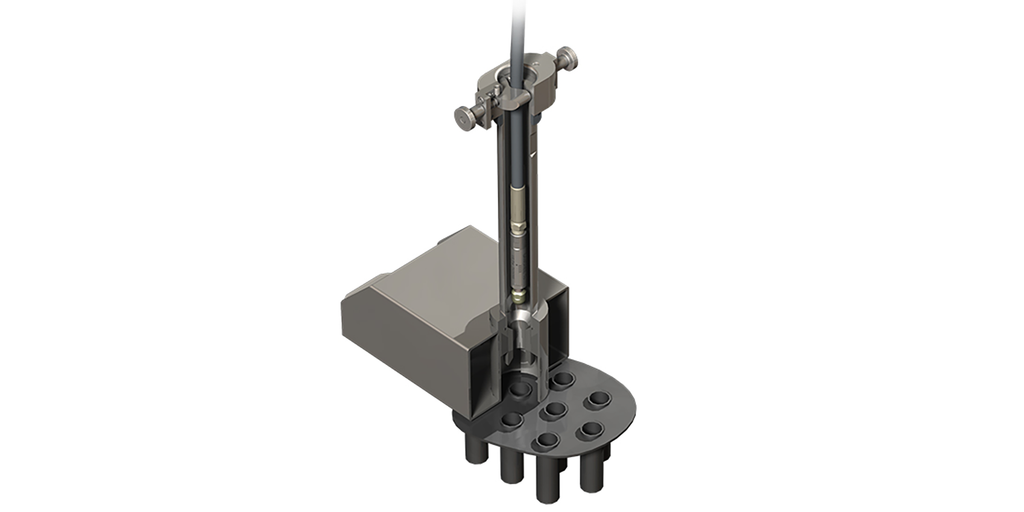

  • Ideal for manual and powered lancing operations
  • Banshee Beetle models are designed to work around tight radiused bends

Digital Downloads:

  1. Banshee Specs Sheet
  2. 20K psi Banshee Manual
  3. 40K psi Banshee Manual
  4. Shrouded Banshee Manual
  • Tool Family: Banshee
  • Tool Model: BN9.5
  • Tube ID Range: 0.47 - 0.63 in. (12 - 16 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 5 - 6 GPM (19 - 23 l/min)
  • Flow Coefficient: 0.20 Cv
  • Inlet Connections: M7, 1/16" NPT, 1/4"-28 MP LH & RH
  • Tool Diameter: 0.40 in. (10 mm)
  • Tool Length: 2.60 in. (65 mm)
  • Tool Weight: 0.05 lb (0.02 kg)
  • Head Weight: 0.01 lb (0.005 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Banshee

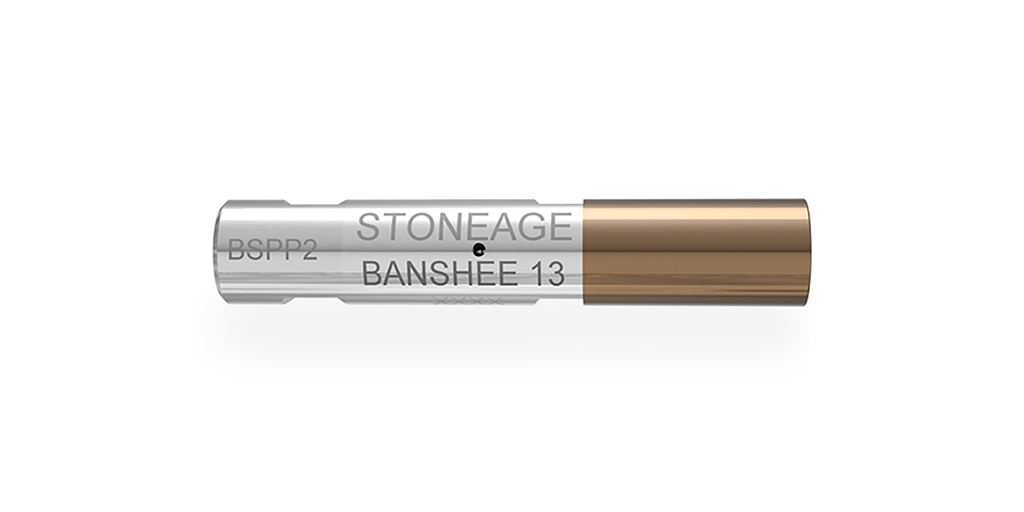

  • Tool Model: BN13, BNS13
  • Tube ID Range: 0.60 - 1.00 in. (15 - 25 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 7 - 9 GPM (26 - 34 l/min)
  • Flow Coefficient: 0.27 Cv
  • Inlet Connections: 1/8" NPT, 1/8" BSPP, 1/4"-28 MP LH & RH, 3/8"-28 MP LH & RH
  • Tool Diameter: 0.50 in. (13 mm)
  • Tool Length: 2.90 in. (74 mm)
  • Tool Weight: 0.10 lb (0.05 kg)
  • Head Weight: 0.05 lb (0.02 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Banshee
  • Tool Model: BN15
  • Tube ID Range: 0.75 - 1.20 in. (19 - 30 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 8 - 10 GPM (30 - 38 l/min)
  • Flow Coefficient: 0.35 Cv
  • Inlet Connections: 1/8" NPT, 1/8" BSPP, 3/8"-28 MP LH & RH
  • Tool Diameter: 0.60 in. (15 mm)
  • Tool Length: 3.00 in. (76 mm)
  • Tool Weight: 0.15 lb (0.07 kg)
  • Head Weight: 0.08 lb (0.04 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Banshee
  • Tool Model: BN18
  • Tube ID Range: 0.87 - 1.30 in. (22 - 33 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 8 - 14 GPM (30 - 53 l/min)
  • Flow Coefficient: 0.66 Cv
  • Inlet Connections: 1/4" NPT, 1/4" BSPP, 9/16"-18 MP LH & RH
  • Tool Diameter: 0.70 in. (18 mm)
  • Tool Length: 3.80 in. (97 mm)
  • Tool Weight: 0.25 lb (0.11 kg)
  • Head Weight: 0.08 lb (0.04 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Banshee
  • Tool Model: BN24
  • Tube ID Range: 1.10 - 2.00 in. (28 - 51 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 11 - 24 GPM (42 - 91 l/min)
  • Flow Coefficient: 0.90 Cv
  • Inlet Connections: 3/8" NPT, 3/8" BSPP, 9/16"-18 MP LH & RH
  • Tool Diameter: 0.90 in. (24 mm)
  • Tool Length: 5.10 in. (130 mm)
  • Tool Weight: 0.60 lb (0.27 kg)
  • Head Weight: 0.10 lb (0.05 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Banshee
  • Tool Model: BN33
  • Tube ID Range: 1.50 - 2.40 in. (38 - 60 mm)
  • Pressure Range: 8 - 22K psi (550 - 1500 bar)
  • Flow Range: 11 - 48 GPM (42 - 182 l/min)
  • Flow Coefficient: 2.30 Cv
  • Inlet Connections: 1/2" NPT, 1/2" BSPP or 9/16" MP Gland
  • Tool Diameter: 1.30 in. (33 mm)
  • Tool Length: 6.90 in. (180 mm)
  • Tool Weight: 1.80 lb (0.81 kg)
  • Head Weight: 0.25 lb (0.11 kg)
  • Maximum Water Temperature: 250°F (120°C)
