2-22K psi STONEAGE 2" BADGER

Manufacturer: StoneAge Tools
SKU: BA-LK-P4

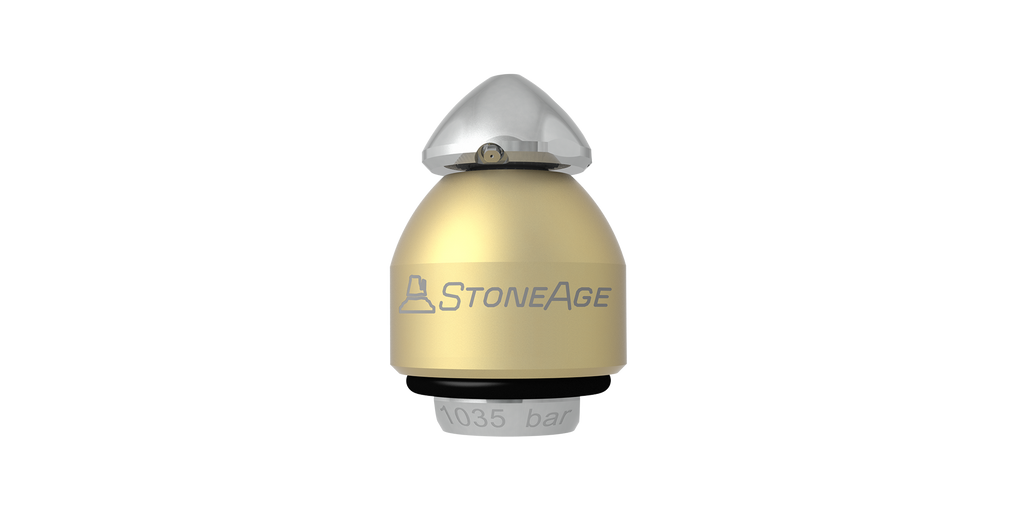

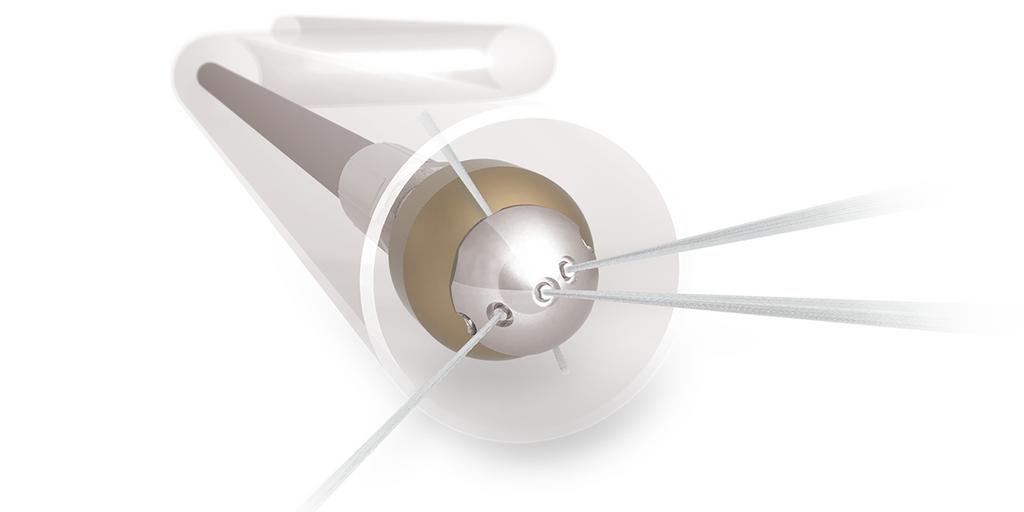

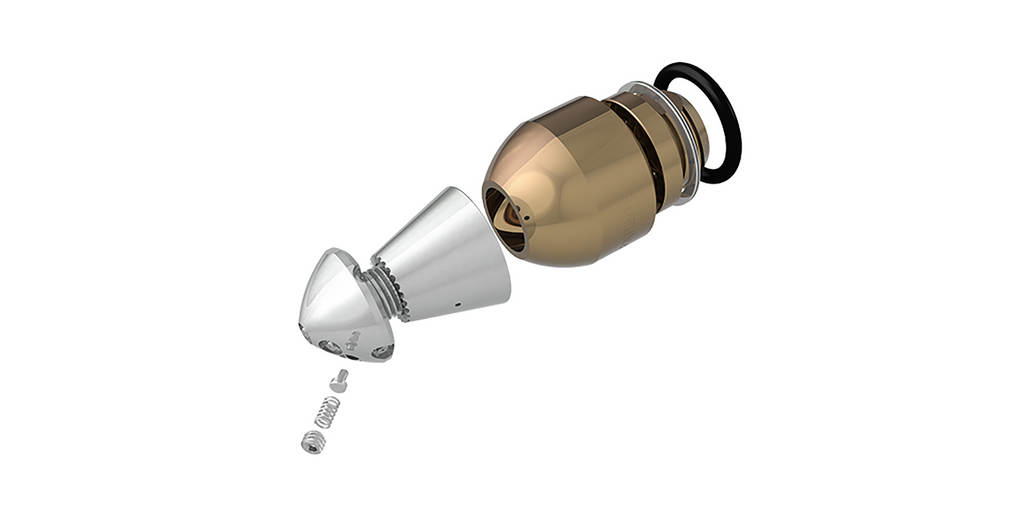

The 2” Badger is a self-rotating swivel designed for cleaning 2 – 4 in. (51 – 102 mm) pipes with bends and long radius elbows, such as U-Tubes and process lines. The latest design includes a spring-loaded pin that ratchets the head to machined edges on the shaft. Therefore, the head can only be removed with a special head removal tool and not while in operation.


Features:

  • The only self-rotary tool on the market that can navigate 2 in. (50 mm) pipes with bends
  • The only tool in the industry with head locking technology for increased safety
  • Unique compact design allows the tool to easily navigate pipe bends

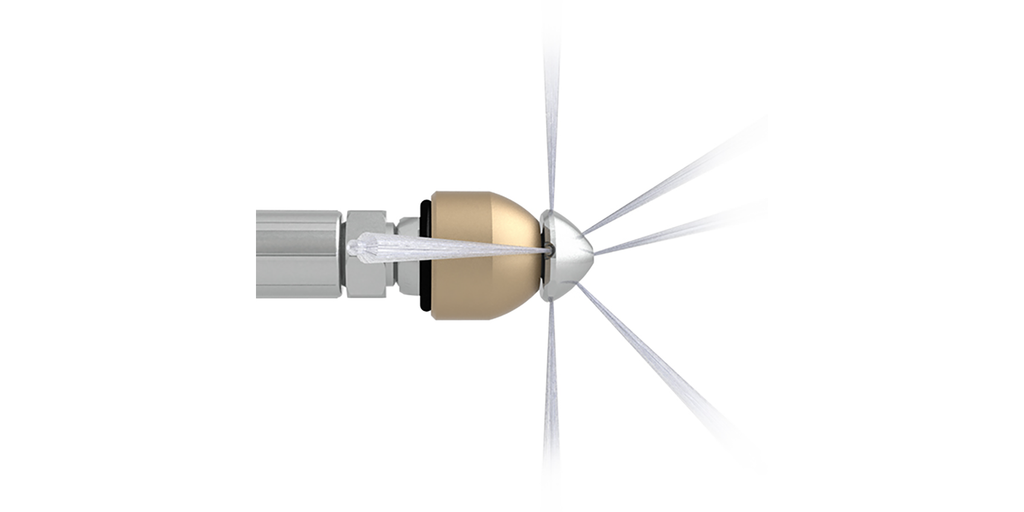

  • Multiple jetting options allow the tool to be optimized for a variety of pump pressures and flows - unplug, polish, or run longer lines based on jetting

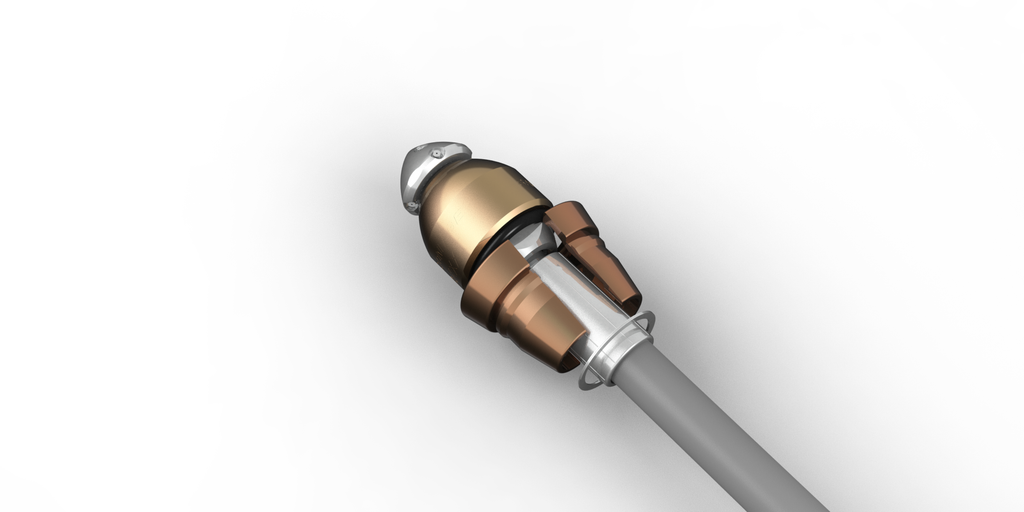

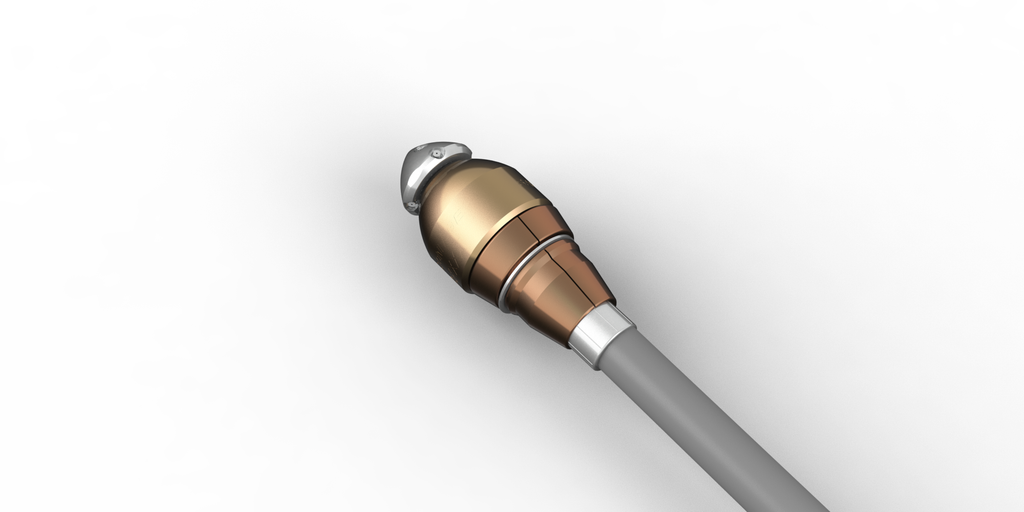

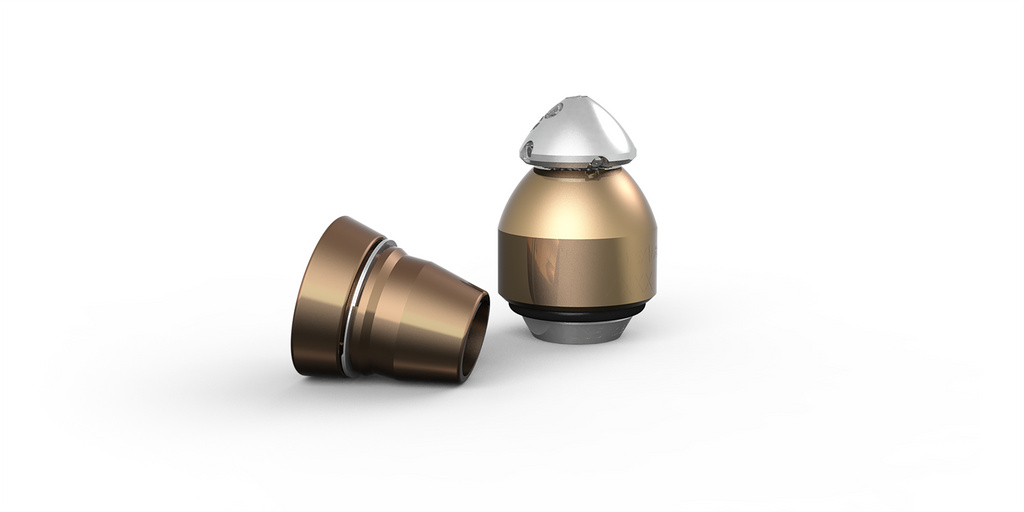

  • Optional fairing available to streamline tool during retrieval
  • Pair with the ABX-PRO for hands-free mole lining

Digital Downloads:

  1. 2" Badger Specs Sheet
  2. 2" Badger User Manual
  • Tool Family: Badger
  • Tool Models: BA-LK-P4, BA-LK-BSPP4
  • Pressure Range: 2 - 15K psi (140 - 1000 bar)
  • Flow Range: 5 - 20 GPM (19 - 76 l/min)
  • Flow Coefficient: 0.50 Cv
  • Rotation Speed: High Speed
  • Inlet Connections: 1/4" NPT, 1/4" BSPP
  • Port Sizes: OD3M, M3
  • Nozzle Type: OD3M
  • Port Plug: OD3M 002
  • Diameter: 1.30 in. (33 mm)
  • Length: 2.00 in. (50 mm)
  • Weight: 0.45 lb (0.20 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Badger
  • Tool Model: BA-LK-MP6R
  • Pressure Range: 10 - 22K psi (690 - 1500 bar)
  • Flow Range: 5 - 20 GPM (19 - 76 l/min)
  • Flow Coefficient: 0.35 Cv
  • Rotation Speed: High Speed
  • Inlet Connection: 3/8"-24 MP RH
  • Port Sizes: OD3M, M3
  • Nozzle Type: OD3M
  • Port Plug: OD3M 002
  • Diameter: 1.30 in. (33 mm)
  • Length: 2.00 in. (50 mm)
  • Weight: 0.45 lb (0.20 kg)
  • Maximum Water Temperature: 250°F (120°C)
  • Tool Family: Badger
  • Tool Models: BA-LK-MP9L, BA-LK-MP9R
  • Pressure Range: 10 - 22K psi (690 - 1500 bar)
  • Flow Range: 5 - 15 GPM (19 - 57 l/min)
  • Flow Coefficient: 0.35 Cv
  • Rotation Speed: High Speed
  • Inlet Connections: 9/16"-18 MP LH & RH
  • Port Sizes: OD3M, M3
  • Nozzle Type: OD3M
  • Port Plug: OD3M 002
  • Diameter: 1.30 in. (33 mm)
  • Length: 2.00 in. (50 mm)
  • Weight: 0.45 lb (0.20 kg)
  • Maximum Water Temperature: 250°F (120°C)
